CF19 laptop with VCADS 88890020/88890180 diagnostic scanner for Volvo truck Bus construction equipment diagnostic tool
| Package included: |
1* Volvo Interface 88890020; |
| |
| |

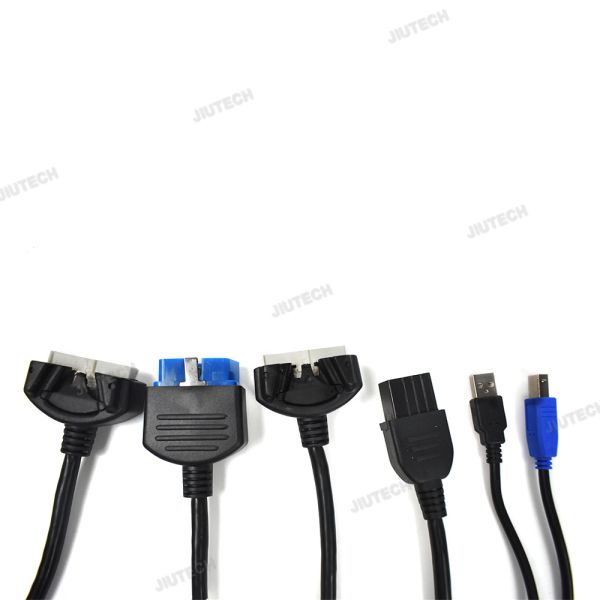

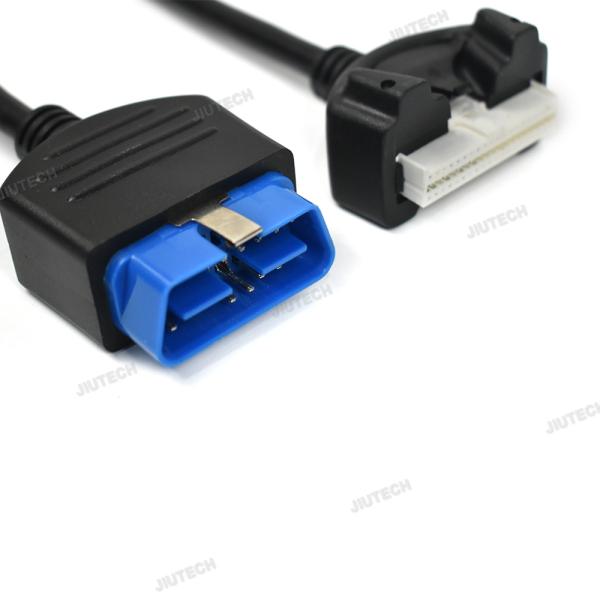

| 1* 88890026 obd 16 pin cable |
| 1* VCADS 2.5.87 software version DVD (in development model) multiple languages |
| 1* CF19 laptop |
Advantages:
1) 100% original and latest version software
2) support 24V/12V volvo trucks and excavators
3) support online technical service
4) supports Volvo Truck Corporation,Volvo Bus Corporation,Volvo Construction Equipment
5)multiple languages:English, French, Spanish, German, Italian, Russian, Hungarian, Dutch, Danish, Chinese, Norwegian, Polish, Turkish, Czech, Swedish, Japanese)
6) life time technical service by our engineer
Support Brand :
All Volvo Bus, truck, construction
Volvo vcads 2.40 , Volvo 88890180 interface with PTT 1.12 /88890020
The 88890180 communication unit enables PC to vehicle communication. The device connects to the PC via a USB cable or by wireless LAN using the 802.11 b/g standard.
Operating temperature range: -40 to +85°C (-40 to +185°F).
Storage temperature range: -40 to +125°C (-40 to 257°F).
Before the 88890020 communication unit can be used, a driver must be installed on the PC. In addition, a utility application (Admin0020) can be used to check the status of the device and update the firmware if and when needed.
There are three different ways, described below, of connecting communication unit88890180.
Via USB-cable
Connect the communication unit to the vehicle.
Connect the USB-cable between the communication unit and the PC.
Select communication unit 88890020 and USB-cable setting in window Alternative.
Directly to the communication unit
Connect the communication unit to the vehicle.
Select communication unit 88890020 and Direct to communication unit in window Alternative.
Security level Directly to the communication unit
Communication is performed using 128 bit WEP, Wired Equivalent Privacy. The WEP-key is generated automatically and is not seen during the configuration.
Via an access point
Note: Contact the local IT-support or network technician before installation.
Connect the communication unit to the vehicle.
Select communication unit 88890020 and Via an access point in window Alternative.
Security level Via an access point
There are three alternatives for this:
WEP and MAC-address. Communication is performed using 128 bit WEP, Wired Equivalent Privacy. The WEP-key is written in during configuration. The MAC-address is to be written into the access point for additional security.
WPA and PSK. Communication is performed via WPA, Wi-Fi Protected Access.
802.1x. Communication is performed using standard EAP_MSCHAP v2. The communication unit is then treated as a PC and will be logged on to the network using a username and password.
communication unit 88890020
Communication unit 88890020 has a number of different coloured LEDs. These LEDs show the status of the communication unit and indicate warnings, etc.

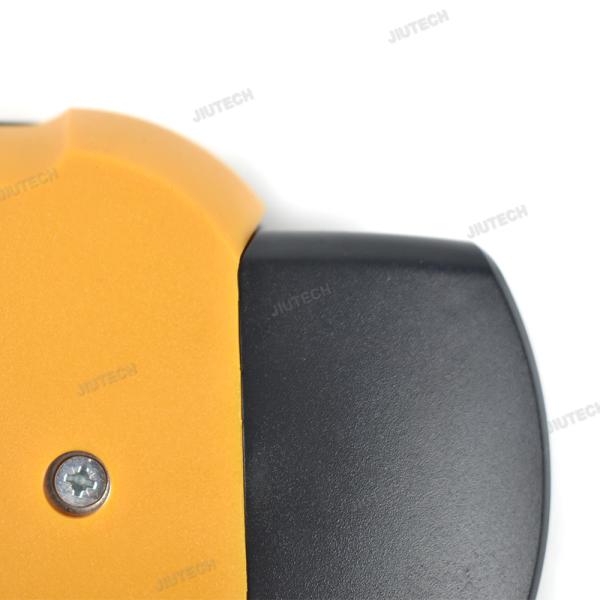

88890180 Communication Unit with protective cover
The Communication Unit 88890180 (previous parts number 88890180) is used to enable communication between a computer and a vehicle/machine.
The Communication Unit 88890180 includes a protective cover that encloses the wire connections and reduce situations where the unit loose connection with the vehicle
For detailed information regarding the Communication Unit , connection types , installation , LED's , fault tracing and software update , see the Tech Tool help.
Warranty
The Communication Unit has a 12 months warranty from delivery date. Please note the date when you received this product . This information is requires if the device needs to be replaced during the warranty .
How to send feedback
Please use your normal channels to report feedback and problems concerning the communication unit .
Connection types
There are three different ways of connecting the communication unit ; via USB cable . directly to the communication unit (wireless)or via access point (wireless) .The default connection type for the communication unit is via USB cable .
Update software (so called Firmware)
The Communication Unit includes software (so called firmware) that is updated on a regular basis . The updates are installed with Tech Tool DVD or in the network releases , and then needs to be downloaded to the Communication Unit through the Update software function . The Communication Unit must be connected both to a computer and a vehicle during the update .
RP1210 application support
The Communication Unit support the RP1210 . Other applications can use this device and perform vehicle/machine communication . The WLAN settings needs to be configured in the Tech Tool settings before you start your RP1210 application . The configurations , IP-addresses etc. are stored in an INI-file which can be used by other RP1210 applications . There is an off-line configuration application available on request ( only available in English).
Known problems
The installation procedure of the USb-driver for the communication unit will be performed the first time the unit is connected to a USB-port . This procedure will be repeated if the unit is connected to another USB-port on the same computer.
